Overview
Most suitable for residential swing gates with an opening / closing of less than 100 degrees. Maximum gate weight is restricted to 200 kg / 2 m per leaf.
Specifications
| Model | SW400 |
|---|---|
| Input Power | 220 VAC |
| DC Motor | 24 VDC / 50 W × 2 |
| Operating Time | 10–12 sec / 90° |
| Operating Speed | Fast / Slow |
| Gate Size | ≈ 200 kg / 2 m |
| Control Drive | Microprocessor PWM, soft start / stop |
| Radio Transmitter | 2 Ch / 433 MHz |
| Safety | Overload / overtime protection + IR photocell |
| On Power Failure | Manual release key |
| EM Lock | Yes |
| Protection Class | IP54 |
What's included

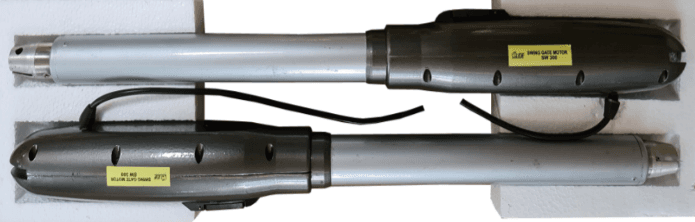

- Arm gate motor with fixtures – 2 Nos
- Remote transmitter – 2 Nos
- Control box with control board – 1 No
- Release keys – 2 Nos
