Overview

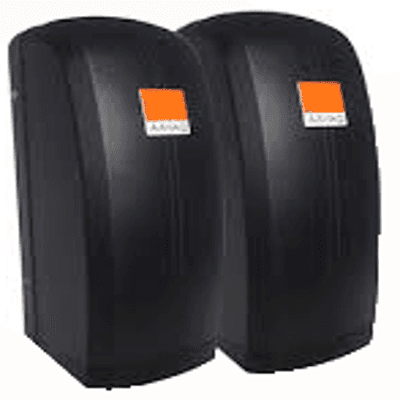

Wheel-driven swing gate motor with a turbo worm mechanism for stable transmission, for gates up to 500 kg per leaf opening to 140°; suitable for single or double gate operation.
Key features
- Turbo worm mechanism for transmission stability
- Easy clutch operation to unlock the motors on power failure
- Inbuilt closing mechanism
- Single or double gate operation
- Overload / overtime protection
- Interfaces: backup battery, infrared sensor, flashing light, wired switch, WiFi
Specifications
| Model | SWR 500 |
|---|---|
| Supply Voltage | 230 VAC single phase |
| Motor | 24 VDC / 40 W each |
| Maximum Gate Weight | 500 kg / leaf |
| Open Angle | 140° |
| Operating Speed | 90° in 10 sec |
| Required Ground Clearance | 25–50 mm |
| Radio Transmitter | 2 Ch / 433 MHz |
| Battery Backup | 12 V / 7 Ah × 2 (option) |
| Gross Weight | 21 kg |
| Package Dimension | 360 × 300 × 300 mm |
| Protection | IP44 |
