Overview

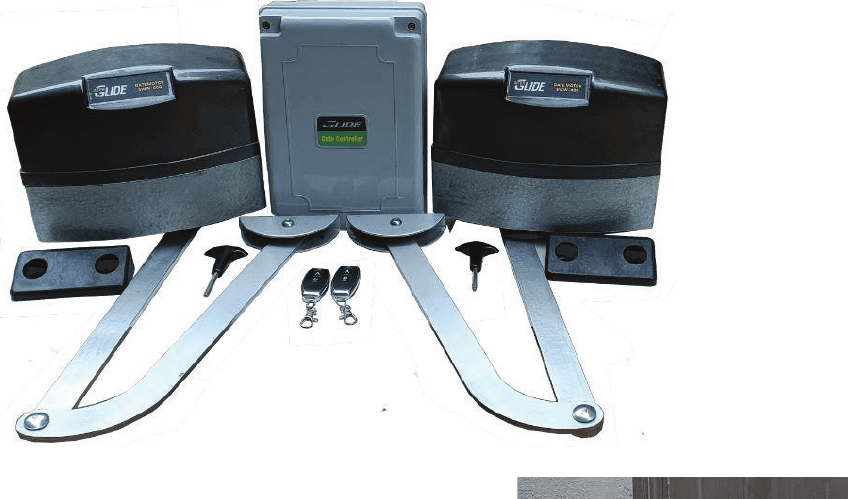

Articulated-arm swing gate motor for gates up to 100 kg / 2 m per leaf, single or double doors — ideal where wide pillars leave little room for a linear arm.
Key features
- Single or double door operation
- Overload and overtime detection
- Maximum operation angle possible
- Interfaces: backup battery, infrared sensor, electric lock, flashing light, wired switch, WiFi
Specifications
| Model | SWW 400 |
|---|---|
| Supply Voltage | 230 VAC single phase |
| Motor | 24 VDC / 40 W each |
| Operating Speed | 130° in 13 sec |
| Required Ground Clearance | > 2 cm |
| Gate Loading Capacity | 100 kg / leaf |
| Gross Weight | 21 kg |
| Package Dimension | 360 × 300 × 300 mm |
