Overview

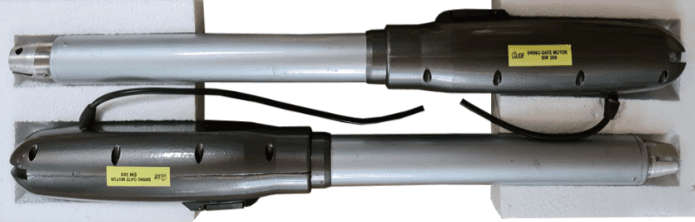

Heavy-duty linear (ram) swing gate motor for gates up to 300 kg / 3 m per leaf and wider opening angles; single or double gate, supplied with 2 RF remotes.
Key features
- Strong & powerful for stable operation
- Easy installation
- ABS waterproof control box; single / double gate selectable; 2 RF remotes
- Interfaces: backup battery, infrared sensor, electric lock, flashing light, wired switch, WiFi
- Easy clutch release in case of power failure
Specifications
| Model | SWA800 |
|---|---|
| Power Supply | 230 VAC / 50 Hz |
| Maximum Gate Weight | 300 kg / 3 m each leaf |
| Motor | 24 V DC gear motor |
| Power Rate | 80 W × 2 |
| Gate Speed | ≈ 10 sec for 90° |
| Displacement | 400 mm |
| Open Angle | 120° |
| Protection | IP44 |
