Overview
Fast-acting heavy-duty boom barrier for high-throughput entry / exit points, with sleek modern looks.
Key features
- Body — 2 mm GI, powder coated with additional UV-resistant coating
- Boom — semi-rectangular aluminium alloy 6063, 90 × 45 mm, full-length reflective strip
- IR photocell safety — barrier reopens on sensing an obstruction while closing
- Optional full-length LED display
- Protection — limit switches / over-time & overload cut-off / IP54
- Operation by manual switch, RF remote, loop detector or RFID
Specifications

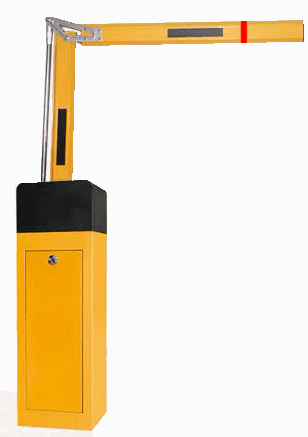

| Model | BBD-90-301 |
|---|---|
| Motor | 60 W / 24 V DC motor |
| Boom Length | 3 m |
| Open / Close Time | 2–3 sec |
| Manual Release | Yes |
| Duty Cycle | Intensive |
| Protection Class | IP54 |
