Overview

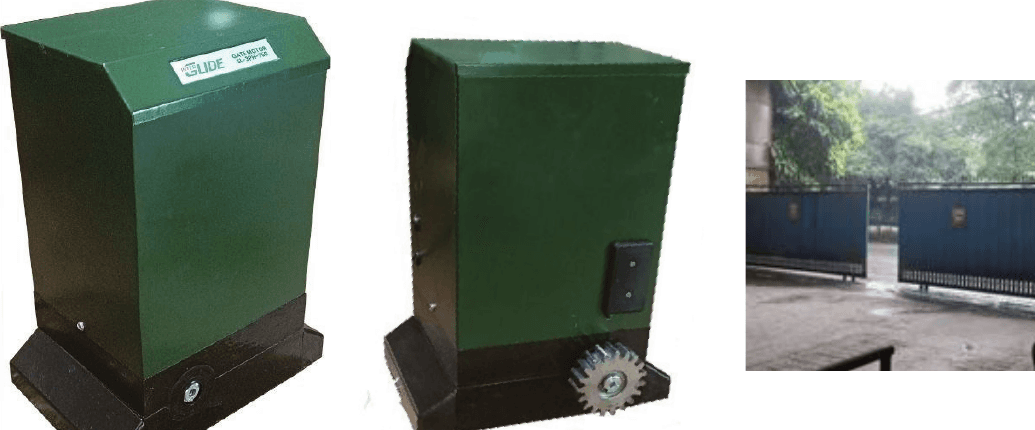

Heavy-duty three-phase gate motor for continuous industrial use, with an oil-immersed worm gear box for smooth, reliable operation on heavy gates up to 3500 kg.
Key features
- Heavy-duty motor for continuous industrial application
- Oil-immersed worm gear box for smooth operation
- Magnetic limit switches to detect open / close ends
- Auto-close, obstruction sense, WiFi, wired switch and flashing siren possible
Specifications
| Model | SL3PH750 · SL3PH1500 |
|---|---|
| Power Supply | 440 V / 3-Phase, 50 Hz |
| Motor Power | 1 HP · 2 HP |
| Allowed Gate Weight | 2500 kg load · 3500 kg load |
| Motor Start Current | 7 A · 10 A |
| Motor Speed | 1400 rpm @ 12 m / min |
| Control Drive | Microprocessor based |
| Radio Transmitter | 2 Ch / 433 MHz |
| Photocell / Auto-close | Yes |
| Protection | IP54 |
