Overview

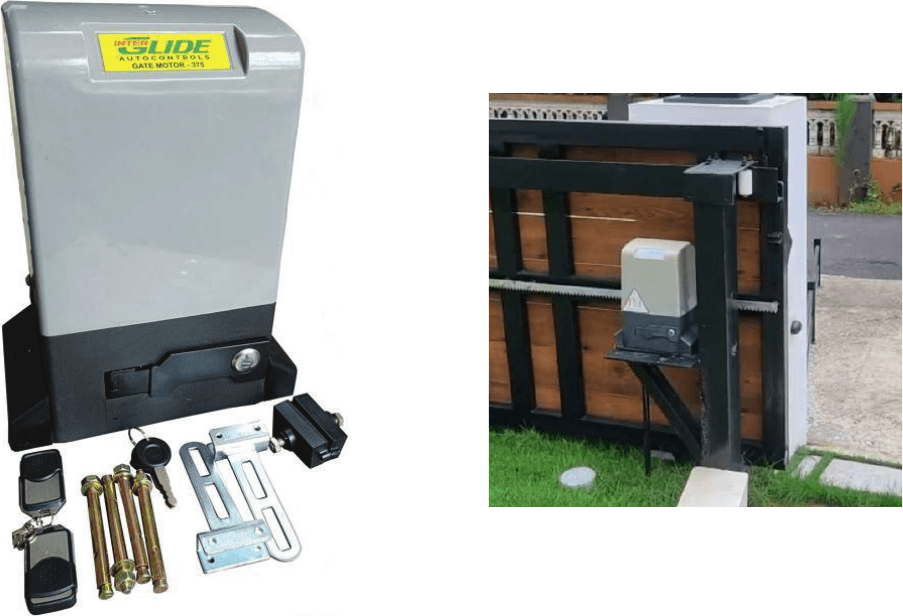

AC sliding gate motor for gates up to 800 kg, with soft start / stop, resistance rebound, auto-close and clutch operation to run the gate manually on power-off.
Key features
- Soft start / stop, resistance rebound, auto-close and more
- Easy to install; clutch operation to operate manually on power-off
- Over-heating protection
- Magnetic limit sensors
- Interfaces: WiFi, infrared sensor, flashing light, wired switch
Specifications
| Model | SL370 |
|---|---|
| Power Supply | 230 VAC / 50 Hz |
| Torque | 22 Nm |
| Maximum Gate Weight | 800 kg |
| Power Rate | 370 W |
| Gate Speed | 12 m / min |
| Protection | IP44 |
