Overview

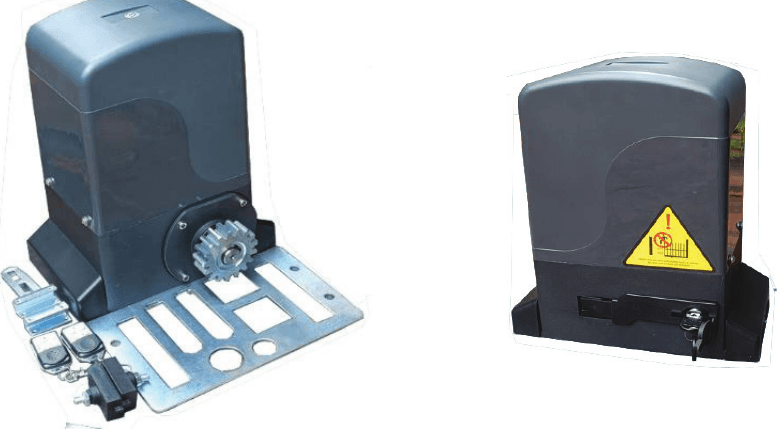

Low-heat DC sliding gate motor with soft start, contact-free magnetic limits and optional battery backup, for gates up to 1500 kg.
Key features
- Soft start – full speed – slow-down near limit
- Easy install; clutch operation to operate manually on power-off
- No motor heating
- Contact-free magnetic limit sensors
- Optional battery backup available
- Interfaces: WiFi, infrared sensor, flashing light, wired switch
Specifications
| Models | SL800DC / SL1500DC |
|---|---|
| Input Voltage | AC 220 V or AC 110 V |
| Motor Power | DC 24 V / 120 W · DC 24 V / 250 W |
| Travel Speed | 9–18 m / min |
| Max Gate Weight | ≤ 800 kg · ≤ 1500 kg |
| Limit Switch | Magnetic or micro limit switch |
| Noise | ≤ 55 dB |
| Temperature | −40 °C ~ 65 °C |
| Protection Class | IP57 |
