Overview

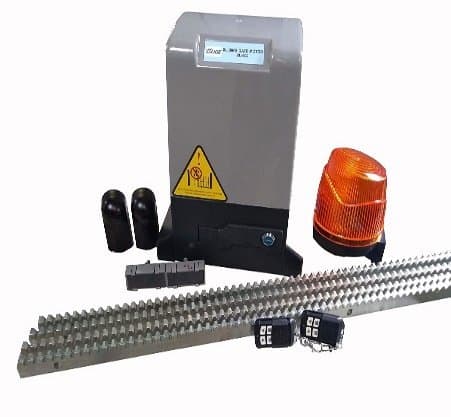

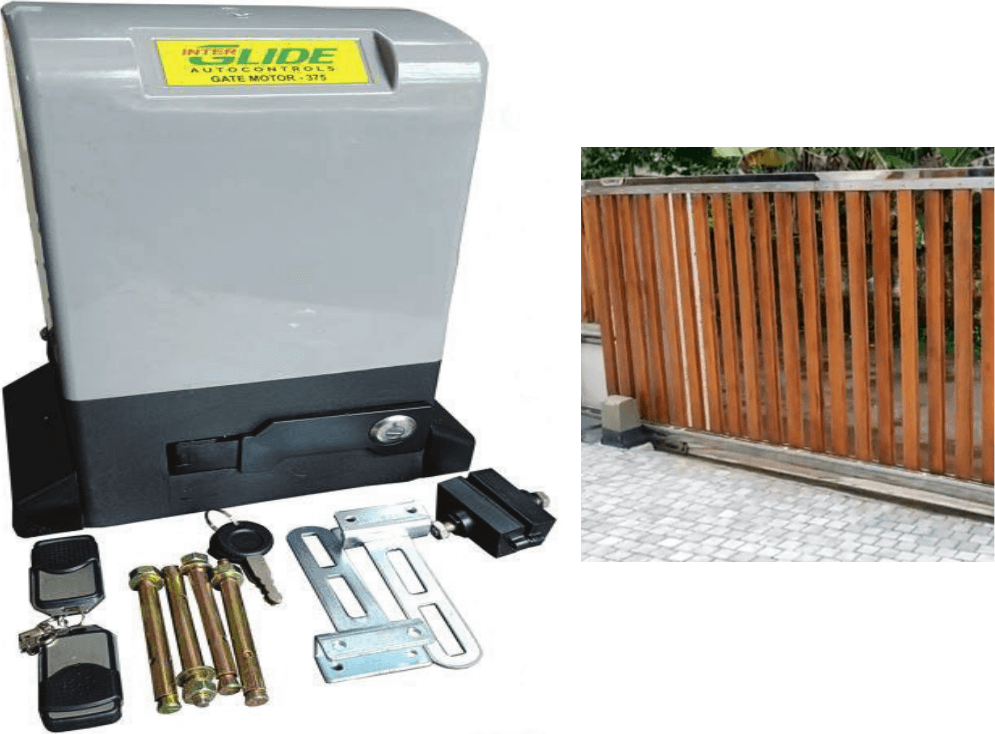

Mid-range sliding gate motor for mechanical sliding gates up to 1000 kg and a 10 m span.
Key features
- Built-in control board
- Adjustable motor torque
- Stops on closing if it hits an obstruction
- Overheat & overload dual protection
- Manual release key on power failure
- Terminals for button switch, photocell, lamp, etc.
Specifications
| Model | SL750 |
|---|---|
| Power Supply | 220 VAC |
| Power Output | 750 W |
| Limit Switch | Magnetic |
| Gate Speed | 12 m / min |
| Remote | Rolling code – 433 MHz |
| Gate Size | 1000 kg / 10 m |
