Overview

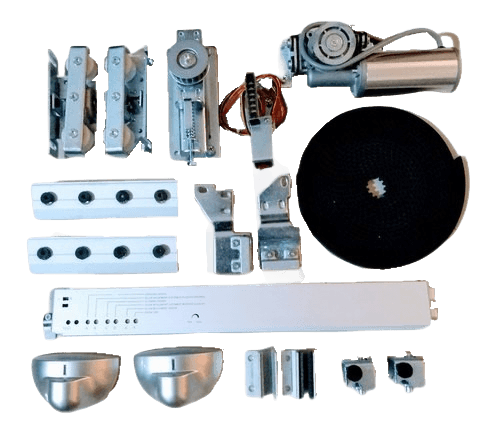

Automatic sensor sliding glass door with a brushless-DC motor and a strong aluminium base rail, for commercial and industrial entrances (up to 360 kg on a double door).
Key features
- BLDC motor for longer life & stability (for arms under 4 m)
- Strong aluminium base rail — lighter and more durable
- Single or double door operation
- Maximum loading 360 kg for a double gate
- Ideal for commercial and industrial entry points
Specifications
| Max Door Weight (single) | 1 × 200 kg |
|---|---|
| Max Door Weight (double) | 2 × 180 kg |
| Door Leaf Width | 700–1300 mm |
| Opening Speed | 150–500 mm/s (adjustable) |
| Closing Speed | 100–450 mm/s (adjustable) |
| Motor Type | 24 V 100 W brushless DC |
| Opening Time | 0–9 sec (adjustable) |
| Voltage | AC 90–250 V, 50/60 Hz |
| Operating Temperature | −20 °C to +70 °C |
